PD5 Davit System Core Mount Sleeve Base
$352.14
Reliable shipping
Flexible returns

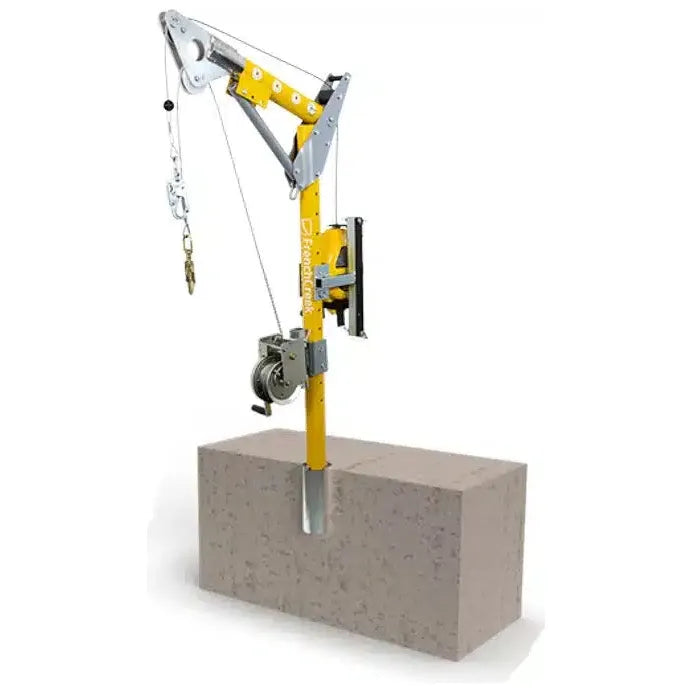

FrenchCreek’s portable davit system can be equipped with a wide range of davit bases to suit the application of your specific job site.
- Designed for slip-in installation
- Fits 4” (0.10m) diameter core hole in concrete or in an existing steel structure
- Ideally suited for recurrent access locations
- 9″ deep sleeve with PVC insert
- Offers 360° mast rotation

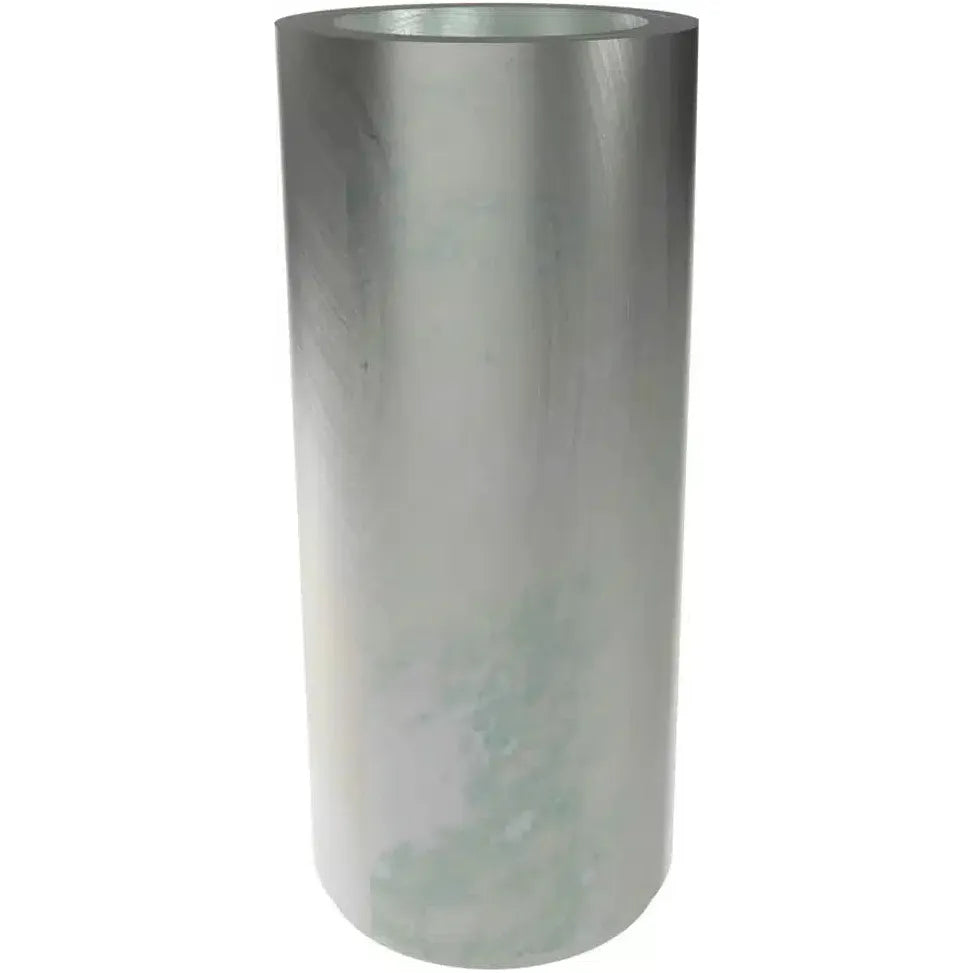

core-mount davit sleeve for 4” (0.10m) diameter core hole in concrete or in an existing steel structure. Compatible with PD1 davit mast assembly.
FEATURES
- David System BaseCore mount sleeve davit base
- Quick Ship ItemQuick-Ship Available
- Compatible WithPD1 Davit Mast Assembly
- AdjustabilityAllows 360° mast rotation
- InstallationFits 4” (0.10m) diameter core hole in concrete or in an existing steel structure
SPECIFICATIONS
- Size9″ deep sleeve with PVC insert/ 3″ inner diameter/ 4″ outer diameter
- Weight Capacity 450lbs (205kg) at minimum 2:1 safety factor
- Item Weight9.7 Lbs.
- MaterialZinc Plated Carbon Steel, Sleeve Insert PVC Pipe
- StandardsOSHA 1926.502 and 1910.66 when used in a complete system
